Cushyfloat™ Special
Features
The design incorporates bump and rebound control features, which limit excessive movements under shock loading. Top metal cover gives protection against oil contamination. Protective finish resists corrosion attack.
Metalastik® Cushyfloat™ special is designed for rough off highway environment. Used on engines for small ADT and Excavator etc.
  Cushyfloat special
Type
Part no.
Max. Bolt Torque Nm
Max. Load kg
Comments

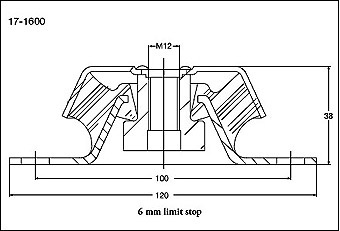

17-1600-11
10-00738-01
25
35
  medium damping
17-1600-25
10-00933-01
25
35
  High damping
17-1600-26
10-00934-01
25
35
  High damping
17-1600-27
10-02624-01
25
35
  High damping - vertical downwards limit stop

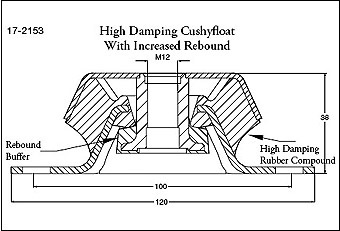

17-2153-00
10-00987-01
25
35
  High damping - moulded rebound buffer
17-2153-01
10-01045-01
25
35
  High damping - moulded rebound buffer
