| Metacone™ & HK |
|
| Metacone™ and HK |

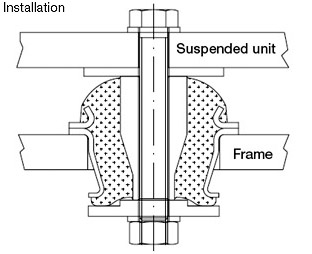

A range of mountings designed for high load capacity with relatively large static deflections. The high loading for a given size is achieved by utilizing the rubber to best advantage in shear and compression. Normally, mountings are assembled with overload and rebound washers to control and limit movement of the suspended equipment under shock loads. Center fixing bolts should be torque tightened to the recommended values. |
| Features |
A compact fail safe design, available for a wide range of loading with in some cases alternative fixings. |
| Cutouts in rubber section on various sizes provide different vertical/horizontal stiffness ratios. |
|
|
|
Type |
Part no. |
Bolt Size |
Max. Bolt Torque Nm |
Max* Load kg |
Top Washer Part no. |
Bottom Washer Part no. |
17-0189-45 |
10-00365-01 |
M12 |
40 |
95 |
20-00529-01 |
20-00038-01 |
17-0189-70 |
10-00367-01 |
M12 |
40 |
275 |
20-00529-01 |
20-00038-01 |

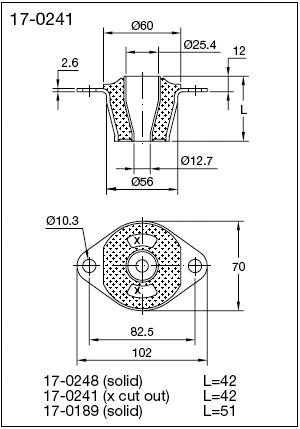

17-0241-45 |
10-00374-01 |
M12 |
40 |
45 |
20-00529-01 |
20-00038-01 |
17-0241-60 |
10-00375-01 |
M12 |
40 |
90 |
20-00529-01 |
20-00038-01 |
17-0248-45 |
10-00379-01 |
M12 |
40 |
90 |
20-00529-01 |
20-00038-01 |
17-0248-60 |
10-00380-01 |
M12 |
40 |
175 |
20-00529-01 |
20-00038-01 |

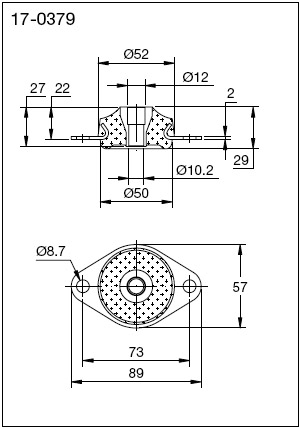

17-0379-45 |
10-00402-01 |
M10 |
25 |
25 |
20-00531-01 |
20-00531-01 |
17-0379-60 |
10-00404-01 |
M10 |
25 |
50 |
20-00531-01 |
20-00531-01 |

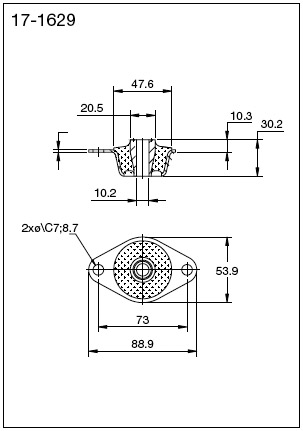

17-1629-45 |
10-00941-01 |
M10 |
25 |
35 |
20-00531-01 |
10-03724-01 |
17-1629-60 |
10-00942-01 |
M10 |
25 |
65 |
20-00531-01 |
10-03724-01 |

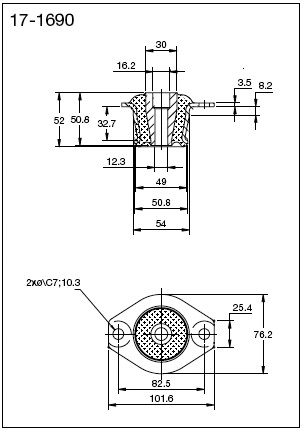

17-1690-50 |
10-00752-01 |
M12 |
90 |
125 |
20-00416-01 |
20-00536-01 |
17-1690-70 |
10-00751-01 |
M12 |
90 |
210 |
20-00416-01 |
20-00536-01 |
|
|
|
|
Type |
Part no. |
Bolt Size |
Max. Bolt Torque Nm |
Max* Load kg |
Top Washer Part no. |
Bottom Washer Part no. |

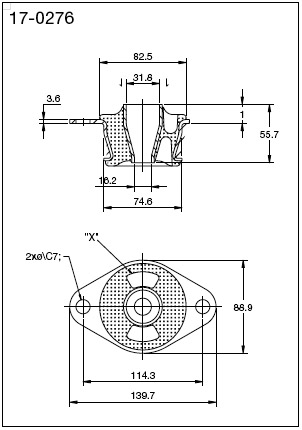

17-0276-45 |
10-03397-01 |
M16 |
75 |
105 |
20-00773-01 |
20-00532-01 |
17-0276-60 |
10-02969-01 |
M16 |
75 |
190 |
20-00773-01 |
20-00532-01 |
17-0277-45 |
10-00385-01 |
M16 |
75 |
105 |
20-00773-01 |
20-00532-01 |
17-0277-60 |
10-00387-01 |
M16 |
75 |
190 |
20-00773-01 |
20-00532-01 |

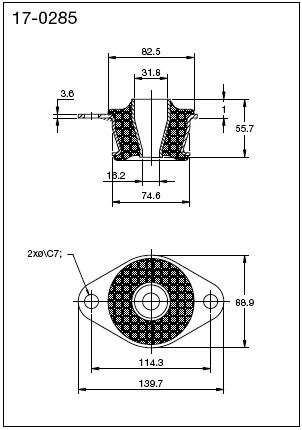

17-0285-60 |
10-00389-01 |
M16 |
75 |
285 |
20-00773-01 |
20-00532-01 |
17-0285-70 |
10-00390-01 |
M16 |
75 |
340 |
20-00773-01 |
20-00532-01 |
17-0311-45 |
10-00391-01 |
M16 |
75 |
105 |
20-00773-01 |
20-00532-01 |
17-0311-60 |
10-00392-01 |
M16 |
75 |
190 |
20-00773-01 |
20-00532-01 |

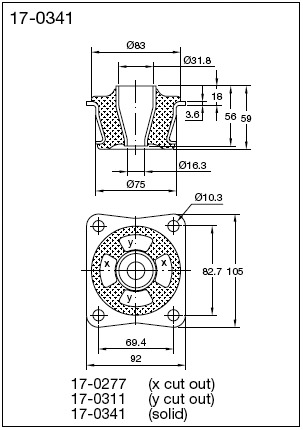

17-0341-45 |
10-00394-01 |
M16 |
75 |
150 |
20-00773-01 |
20-00532-01 |
17-0341-60 |
10-00395-01 |
M16 |
75 |
285 |
20-00773-01 |
20-00532-01 |
17-0341-70 |
10-00396-01 |
M16 |
75 |
340 |
20-00773-01 |
20-00532-01 |

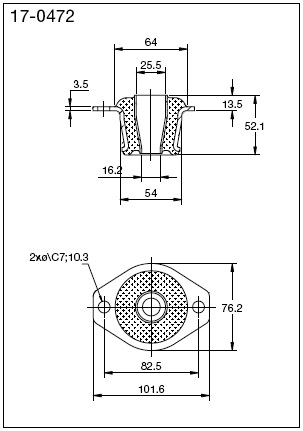

17-0472-45 |
10-00420-01 |
M16 |
50 |
125 |
20-00529-01 |
20-00038-01 |
17-0472-60 |
10-00904-01 |
M16 |
50 |
235 |
20-00529-01 |
20-00038-01 |

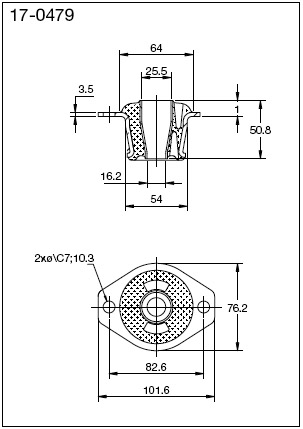

17-0479-45 |
10-00711-01 |
M16 |
50 |
75 |
20-00529-01 |
20-00038-01 |
17-0479-60 |
10-00712-01 |
M16 |
50 |
140 |
20-00529-01 |
20-00038-01 |

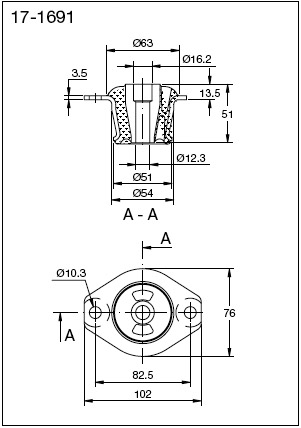

17-1691-45 |
10-00566-01 |
M12 |
90 |
50 |
20-00416-01 |
20-00536-01 |
17-1691-60 |
10-00567-01 |
M12 |
90 |
100 |
20-00416-01 |
20-00536-01 |

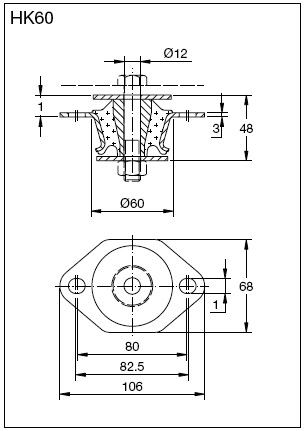

HK 60-40 |
10-00186-01 |
M12 |
40 |
65 |
20-00416-01 |
20-00416-01 |
HK 60-50 |
10-00058-01 |
M12 |
40 |
85 |
20-00416-01 |
20-00416-01 |
HK 60-60 |
10-00187-01 |
M12 |
40 |
135 |
20-00416-01 |
20-00416-01 |
HK 60-70 |
10-00057-01 |
M12 |
40 |
190 |
20-00416-01 |
20-00416-01 |
|
|
|
|
Type |
Part no. |
Bolt Size |
Max. Bolt Torque Nm |
Max* Load kg |
Top Washer Part no. |
Bottom Washer Part no. |

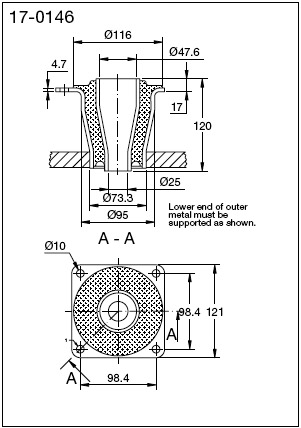

17-0146-45 |
10-00360-01 |
M24 |
200 |
685 |
20-00527-01 |
20-00031-01 |
17-0146-60 |
10-00361-01 |
M24 |
200 |
1285 |
20-00527-01 |
20-00031-01 |

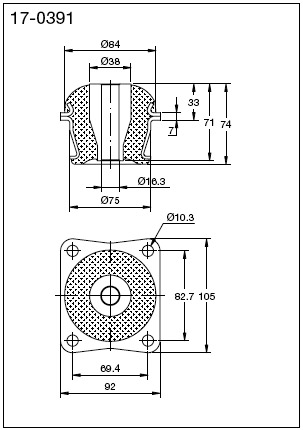

17-0391-45 |
10-00411-01 |
M16 |
135 |
250 |
20-00532-01 |
20-00532-01 |
17-0391-60 |
10-00414-01 |
M16 |
135 |
470 |
20-00532-01 |
20-00532-01 |
17-0391-70 |
10-00415-01 |
M16 |
135 |
720 |
20-00532-01 |
20-00532-01 |

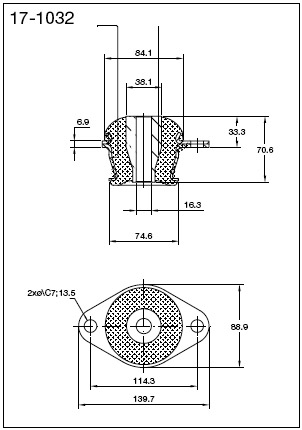

17-1032-45 |
10-02905-01 |
M16 |
135 |
250 |
20-00532-01 |
20-00532-01 |
17-1032-60 |
10-02977-01 |
M16 |
135 |
470 |
20-00532-01 |
20-00532-01 |
17-1032-70 |
10-03726-01 |
M16 |
135 |
720 |
20-00532-01 |
20-00532-01 |

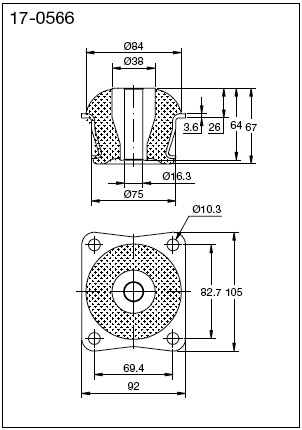

17-0566-45 |
10-00433-01 |
M16 |
135 |
165 |
20-00532-01 |
20-00532-01 |
17-0566-60 |
10-00434-01 |
M16 |
135 |
310 |
20-00532-01 |
20-00532-01 |
17-0566-70 |
10-00435-01 |
M16 |
135 |
495 |
20-00532-01 |
20-00532-01 |

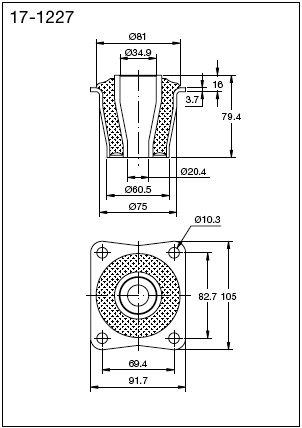

17-1227-45 |
10-00459-01 |
M20 |
180 |
425 |
20-00528-01 |
20-00036-01 |
17-1227-60 |
10-00460-01 |
M20 |
180 |
850 |
20-00528-01 |
20-00036-01 |

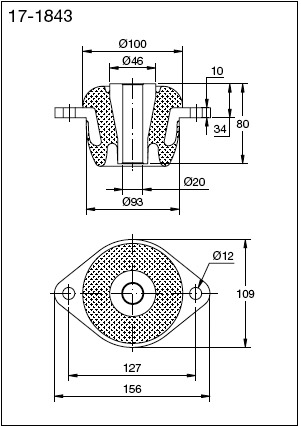

17-1843-45 |
10-00609-01 |
M24 |
160 |
250 |
20-00533-01 |
20-00533-01 |
17-1843-60 |
10-00610-01 |
M24 |
160 |
460 |
20-00533-01 |
20-00533-01 |
|
|
|
|
Type |
Part no. |
Bolt Size |
Max. Bolt Torque Nm |
Max* Load kg |
Top Washer Part no. |
Bottom Washer Part no. |

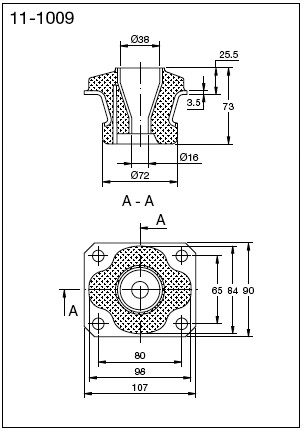

11-1009-45 |
10-00192-01 |
M16 |
75 |
105 |
20-00532-01 |
20-00532-01 |
11-1009-55 |
10-00193-01 |
M16 |
75 |
150 |
20-00532-01 |
20-00532-01 |

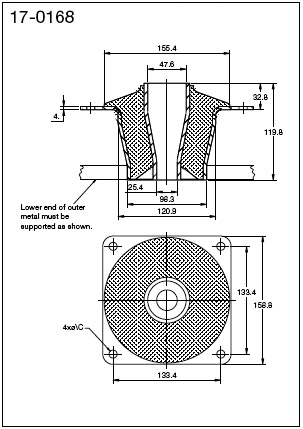

17-0168-45 |
10-00363-01 |
M24 |
200 |
640 |
20-00527-01 |
20-00031-01 |
17-0168-60 |
10-00364-01 |
M24 |
200 |
1200 |
20-00527-01 |
20-00031-01 |

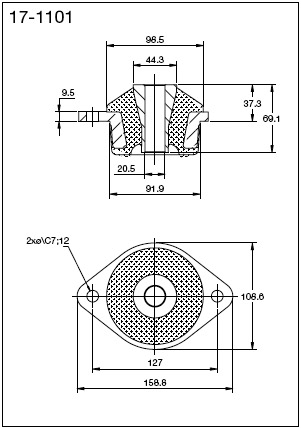

17-1101-60 |
10-00721-01 |
M20 |
160 |
365 |
20-00533-01 |
20-00533-01 |
17-1101-70 |
10-02978-01 |
M20 |
160 |
585 |
20-00533-01 |
20-00533-01 |

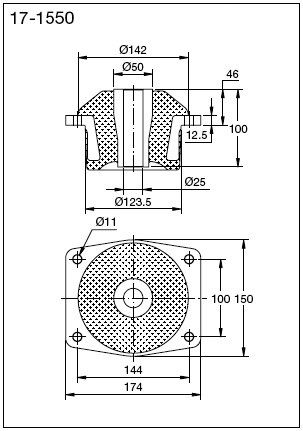

17-1550-45 |
10-00522-01 |
M24 |
260 |
435 |
20-00534-01 |
20-00534-01 |
17-1550-60 |
10-00523-01 |
M24 |
260 |
820 |
20-00534-01 |
20-00534-01 |

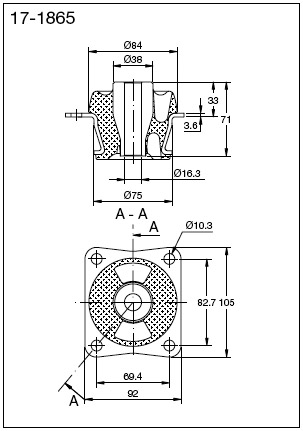

17-1865-55 |
10-00615-01 |
M16 |
135 |
150 |
20-00532-01 |
20-00532-01 |

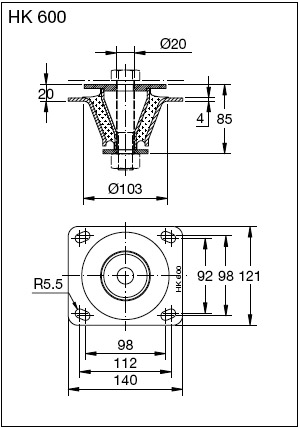

HK 600-40 |
10-00190-01 |
M20 |
120 |
685 |
20-00643-01 |
20-00644-01 |
HK 600-60 |
10-00191-01 |
M20 |
120 |
1260 |
20-00643-01 |
20-00644-01 |
|
