Air Spring systems
Benefits
• Satisfy stringent requirements for modern Rail technology
• Progressive force/displacement characteristics (if required)
• Large horizontal and angular displacement capability
• Low ride-frequency in emergency situations
• Ideal for all types of bogie designs
• Integral reservoir (if required)
Features/Applications
Collaborative expertise has created a range of Metalastik® Air Spring systems which meet the stringent requirements of modern rail technology, particularly combining large horizontal displacements and low frequency ride characteristics for both normal and emergency conditions.
The potential of progressive force/displacement characteristics enable a stable vehicle performance to be achieved.
The ability to accommodate high horizontal, torsional, and conical displacements make these Air Spring Systems ideal solutions on bolsterless bogie designs. They can of course be adapted to suit bolster arrangements.
The inclusion of an air reservoir can simplify the total system integration of the vehicle.

Typical Systems

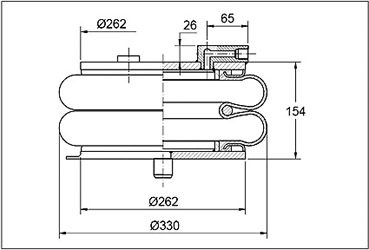

Air Spring Assembly 45/1004
Vertical Load Capacity 46 kN
Vertical Frequency < 1.55 Hz
(Airspring System plus 25 litre added volume)
Maximum Horizontal Displacement ± 10 mm
Working Height 154 mm
Air Pressure (at maximum load) 8.0 bar
Air-bag Ref. 46/1004 G

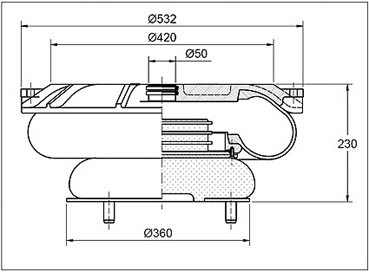

Air Spring Assembly 45/1022
Vertical Load Capacity 78 kN
Vertical Frequency <1.3 Hz
(Airspring System plus 25 litre added volume)
Maximum Horizontal Displacement ± 110 mm
Working Height 230 mm
Air Pressure (at maximum load) 6.1 bar
Air-bag Ref. 46/1010 E
Series Spring Ref. 17/1022
Internal Emergency Spring 15/3613

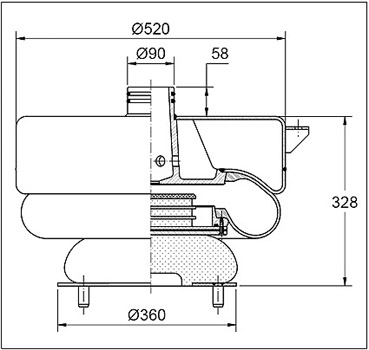

Air Spring Assembly 45/1010
Vertical Load Capacity 83 kN
Vertical Frequency <1.3 Hz
(Airspring System plus 0 litre added volume)
Maximum Horizontal Displacement ± 105 mm
Working Height 328 mm
Air Pressure (at maximum load) 6.2 bar
Air-bag Ref. 46/1010 E
Series Spring Ref. 17/1908
Internal Emergency Spring 15/3613

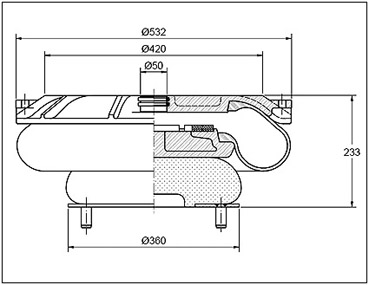

Air Spring Assembly 45/1006
Vertical Load Capacity 100 kN
Vertical Frequency <1.3 Hz
(Airspring System plus 25 litre added volume)
Maximum Horizontal Displacement ± 80 mm
Working Height 233 mm
Air Pressure (at maximum load) 6.9 bar
Air-bag Ref. LM9186 A
Series Spring Ref. 17/1852

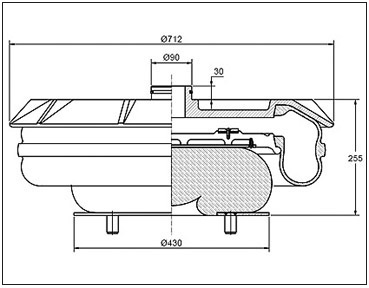

Air Spring Assembly 45/1039
Vertical Load Capacity 105 kN
Vertical Frequency <1.5 Hz
(Airspring System plus 20 litre added volume)
Maximum Horizontal Displacement ± 120 mm
Working Height 250 mm
Air Pressure (at maximum load) 6.0 bar
Air-bag Ref. LM9263 A
Series Spring Ref. LM9373

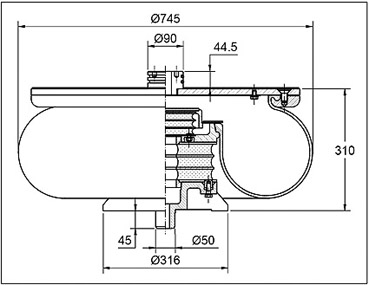

Air Spring Assembly 45/1040
Vertical Load Capacity 110 kN
Vertical Frequency <1.0 Hz
(Airspring System plus 40 litre added volume)
Maximum Horizontal Displacement ± 120 mm
Working Height 310 mm
Air Pressure (at maximum load) 5.2 bar
Air-bag Ref. LM9086 A
Series Spring Ref. 17/1845
Internal Emergency Spring 17/1700

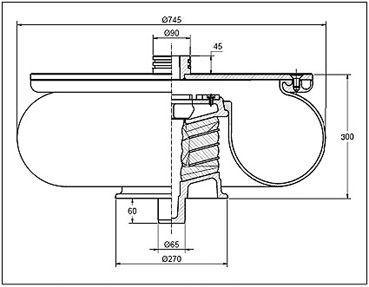

Air Spring Assembly 45/1007
Vertical Load Capacity 114 kN
Vertical Frequency <1.0 Hz
(Airspring System plus 40 litre added volume)
Maximum Horizontal Displacement ± 120 mm
Working Height 300 mm
Air Pressure (at maximum load) 5.3 bar
Air-bag Ref. LM9086 A
Series Spring Ref. LM9137

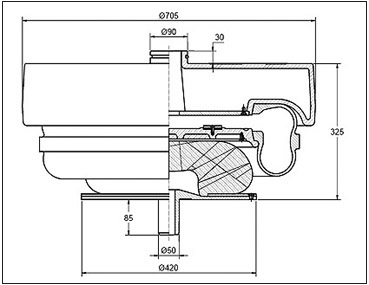

Air Spring Assembly 45/1001
Vertical Load Capacity 122 kN
Vertical Frequency <1.0 Hz
(Airspring System plus 70 litre added volume)
Maximum Horizontal Displacement ± 110 mm
Working Height 325 mm
Air Pressure (at maximum load) 5.4 bar
Air-bag Ref. 61/0067
Series Spring Ref. 17/1918

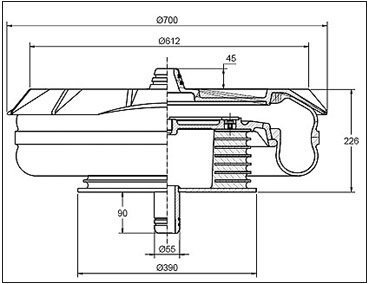

Air Spring Assembly 45/1003
Vertical Load Capacity 130 kN
Vertical Frequency <1.2 Hz
(Airspring System plus 45 litre added volume)
Maximum Horizontal Displacement ± 105 mm
Working Height 226 mm
Air Pressure (at maximum load) 5.2 bar
Air-bag Ref. 61/0070
Series Spring Ref. 17/1835
Air Spring Assembly 45/1015
Vertical Load Capacity 130kN
Vertical Frequency <1.0 Hz
(Airspring System plus 70 litre added volume)
Maximum Horizontal Displacement ± 125 mm
Working Height 225 mm
Air Pressure (at maximum load) 5.2 bar
Air-bag Ref. LM9076 A
Series Spring Ref. 17/1962

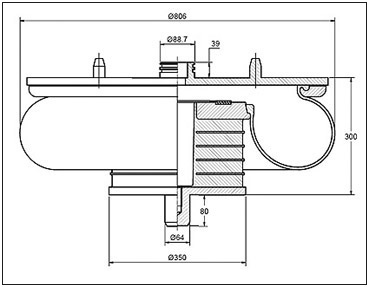

Air Spring Assembly 45/1029
Vertical Load Capacity 158 kN
Vertical Frequency <1.4 Hz
(Airspring System with no added volume)
Maximum Horizontal Displacement ± 120 mm
Working Height 300 mm
Air Pressure (at maximum load) 5.2 bar
Air-bag Ref. 46/1024 D
Series Spring Ref. 17/2095/1

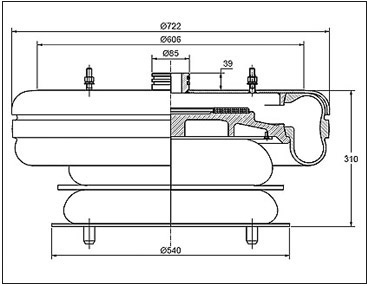

Air Spring Assembly LM9338
Vertical Load Capacity 180 kN
Vertical Frequency <1.1 Hz
(Airspring System plus 80 litre added volume)
Maximum Horizontal Displacement ± 120 mm
Working Height 310 mm
Air Pressure (at maximum load) 5.9bar
Air-bag Ref. LM9338 A
Series Spring Ref. LM8339
