| Equi-Frequency mountings large series |
|
| Features / Applications |
| • In common with the range of smaller Equi-Frequency mountings,these heavy duty parts have substantially the same stiffness in all directions. |
• With two sizes of mounts produced in two rubber compounds it is possible to support static loads from 40 to 215kN. Parts are available with ferrous and non
magnetic metal parts. Rubber sections are protected with an MOD approved protective lacquer to reduce oil and ozone attack |
| • Equi-Frequency mountings are designed to meet the shock requirements of BR8470 (UK MOD) |
• This range of mountings was designed to support and isolate Marine propulsion engines, Generator sets, Gas Turbine engines, Reactors and Machinery Rafts |
|
|
| |

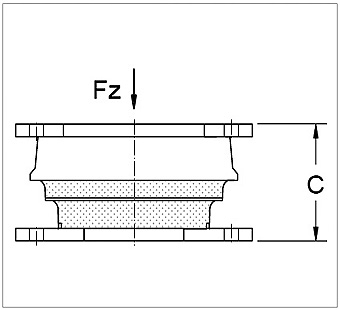

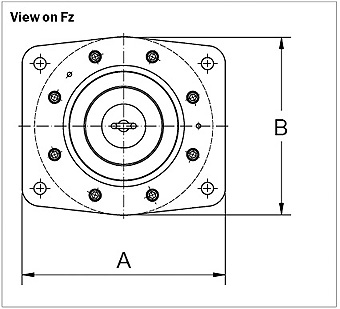

Product No. |
A |
B |
C |
Mass Weight kg |
Rubber Hardness |
Load, Fz kN |
Static Stiffness kN/mm |
Dynamic Stiffness kN/mm |
17-1472 |
346 |
305 |
152 |
31 |
45 |
40 |
2.45 |
2.85 |
60 |
74 |
4.6 |
6.0 |
17-1544 |
570 |
500 |
283 |
192 |
45 |
115 |
8.0 |
9.3 |
60 |
215 |
14.2 |
18.5 |
|
|
|
