Sandwich mountings large series |
|
Features / Applications |
This range of mountings is suited to the suspension of heavy equipment and machinery and is extensively used as a flexible mounting for large medium speed diesel marine propulsion units. The ratio of compression to shear stiffness rates can be varied by incorporating rigid interleave plates in the rubber section, thereby enabling the overall suspension properties to be optimised to isolate the major disturbing vibrations. |
The mountings are usually installed in a vee arrangement and when correctly positioned, afford a high level of vibration isolation but at the same time keep movements of the suspended equipment, under the action of external forces, to a minimum. |
|
|
|
All dimensions in mm |
|
|
|
|
|
Max Static |
|
Max Static |
|
|
Nominal |
|
Nominal |
|
Product |
A |
B |
C |

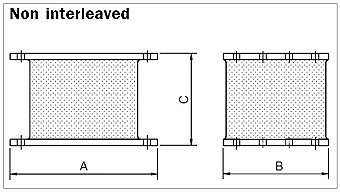

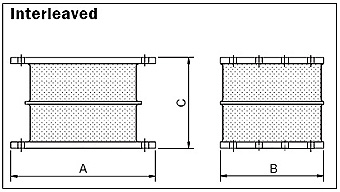

Interleaves |
Compression |
|
Compression |
Weight |
Rubber |
Compression |
|
Shear Stiffness |
|
No. |
mm |
mm |
mm |
|
Load, |
kN |
Deflection, mm
|
kg |
Hardness |
Stiffness, kN/m |
kN/m |
|
|
|
|
|
|
|
45H |
60H |
|
|
|
Static |
Dyn. |
Static |
Dyn. |
17-1666
|
280 |
200 |
175 |
None |
11.8 |
22 |
15 |
17.2 |
45 |
890 |
1000 |
130 |
150 |
60 |
1650 |
2170 |
250 |
325 |
17-1742 |
280 |
200 |
127 |
None |
13.2 |
24.5 |
10 |
14 |
45 |
1600 |
1840 |
200 |
230 |
60 |
3000 |
3900 |
375 |
490 |
17-1783 |
460 |
268 |
109 |
None |
46 |
84 |
8.5 |
29.8 |
45 |
5750 |
6610 |
600 |
690 |
60 |
10750 |
14000 |
1125 |
1460 |
17-2181 |
460 |
268 |
109 |
1 |
83 |
155 |
8 |
30.5 |
45 |
13500 |
15500 |
515 |
590 |
60 |
25500 |
33200 |
965 |
1255 |
17-0434 |
460 |
268 |
109 |
2 |
224 |
417 |
7.5 |
34 |
45 |
28750 |
33000 |
575 |
660 |
60 |
53900 |
70000 |
1080 |
1400 |
|
N.B. In many cases, the horizontal shear stiffness rates will reduce under compressive forces, - see graphs overleaf. |
|
Vee arrangements 2 x 45 deg |
Product
No. |
Rubber
Hardness |
Max Static Vertical Load kN |
Max Static Vertical Deflection, mm |
17-1666 |
45 |
20.5 |
21 |
60 |
38 |
21 |
17-1742 |
45 |
24 |
14 |
60 |
46 |
14 |
17-1783 |
45 |
69 |
11 |
60 |
132 |
11 |
17-2181 |
45 |
147 |
10.5 |
60 |
280 |
10.5 |
17-0434 |
45 |
310 |
10.5 |
60 |
584 |
10.5 |
|
|
|
|
|
