Vehicle Metacone Springs |
|
Features / Applications |
The Metacone Spring is an easily fitted and compact suspension unit in which the rubber is loaded in combined shear and compression. |
Optimum load-deflection properties, i.e. high load capacity and large static deflections can be provided within acceptable space envelope limitations. |
The range illustrated caters for static vertical loads and deflections up to 50kN and 40mm respectively, which are typically suitable for many primary suspension requirements. |
These springs may also be considered for secondary suspensions and power unit applications. |
Metacone springs generally provide the same stiffness rates in the principal horizontal modes but alternative designs with disimilar horizontal stiffness rates can be produced. |
|
|

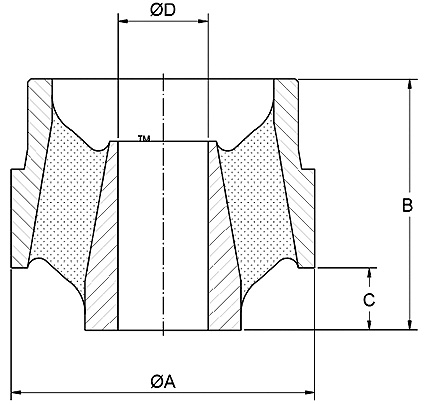

Metacone Springs |
20 - 40 mm vertical deflection |
|
|
Horizontal stiffness rates quoted in the table below relate to the normal vertical load condition and may vary with vertical deflection. |
|
|
|
Prod. No. |
|
17-2083 |
17-1888 |
17-2105 |
Vertical load |
kN |
8.5 |
17 |
24.8 |
Vertical deflection |
mm |
20 |
20 |
20 |
Vertical stiffness |
MN/m |
0.42 |
0.84 |
1.21 |
Lateral stiffness |
MN/m |
3.4 |
2.3 |
4 |
Longitudinal stiffness |
MN/m |
3.4 |
2.3 |
4 |
Dimension A |
mm |
185 |
185 |
150 |
Dimension B |
mm |
153 |
153 |
143 |
Dimension C |
mm |
38 |
38 |
41 |
Dimension D |
mm |
55 |
55 |
- |
Unit mass |
kg |
7.3 |
10.5 |
5.25 |
|
|

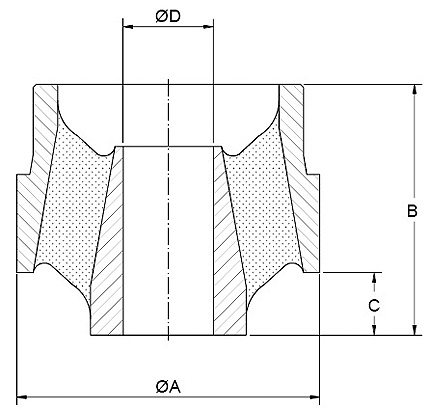

Metacone Springs |
20 - 40 mm vertical deflection |
|
|
Horizontal stiffness rates quoted in the table below relate to the normal vertical load condition and may vary with vertical deflection. |
|
|
Metacone Springs |
Prod. No. |
|
17-1053 |
17-2047 |
17-1817 |
17-1836 |
Vertical load |
kN |
14 |
31 |
51 |
34 |
Vertical deflection |
mm |
23 |
32 |
34 |
38 |
Vertical stiffness |
MN/m |
0.6 |
3.6 |
1.5 |
0.9 |
Lateral stiffness |
MN/m |
0.8 |
4 |
* |
9.5 |
Longitudinal stiffness |
MN/m |
0.8 |
4 |
* |
9.5 |
Dimension A |
mm |
207 |
260 |
293 |
275 |
Dimension B |
mm |
118 |
319 |
282 |
243 |
Dimension C |
mm |
54 |
103 |
132 |
103 |
Dimension D |
mm |
79 |
- |
90 |
- |
Unit mass |
kg |
7.2 |
24.5 |
38.5 |
30 |
|
