BA & Double U-Shear

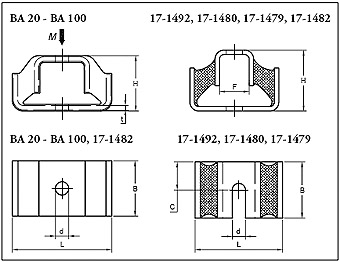

Novibra® type BA and Metalastik® type Double U-Shear
Novibra® type BA and Metalastik® type Double U-Shear are equally suitable for isolating vibrations from low speed machines and equipment. Protects sensitive and lightweight units from external shocks and vibrations.
Type BA and Double U-Shear are easy to install and ideal for applications e.g.
• Light fans and compressors • Transit cases
• Portable gensets and pumps • Measuring and test instruments
• Computers and electronic units • Gauging equipment
Features

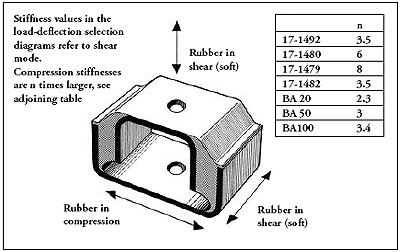

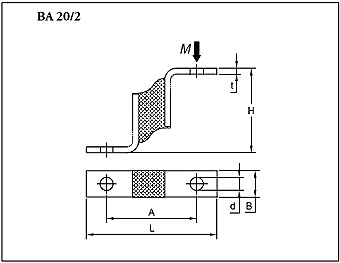

Novibra® type BA and Metalastik® type Double U-Shear mountings utilise bonded rubber in shear to permit relatively high defl ections. Provides excellent isolation of low frequencies. (Type BA 20/2 is a half section suitable for very light loads). On rotating equipment applications the soft axis should be at right angles to the shaft. On mobile applications the stiff axis should be aligned in the direction of travel. For transit case applications the mountings need to be arranged so that the horizontal stiffness is the same in all directions.
