Cushyfloat™ Mountings
Metalastik® type Cushyfl oat™
The Cushyfl oat™ mounting is an ideal general purpose unit designed to provide effective isolation of vibration and noise arising from many types of static and mobile equipment including:
• Marine, industrial and vehicle engines
• Generator sets
• Pumps
• Compressors
Features
Originally designed for use with marine engines, this compact low profi le mounting is easy to install. It combines 3 way control of the suspended equipment with relatively large static defl ections where the rubber is loaded in shear and compression.
The design incorporates bump and rebound control features which limit excessive movements under shock loading. Top metal cover gives protection against oil contamination.
Protective fi nish resists corrosion attack. Propeller thrust on marine applications is accommodated. There are four sizes in the standard range which with varying degrees of rubber hardness cater for point loads from 32 kg to 3000 kg. Natural frequencies as low as 8 Hz are possible.

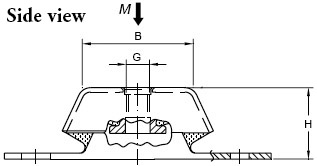

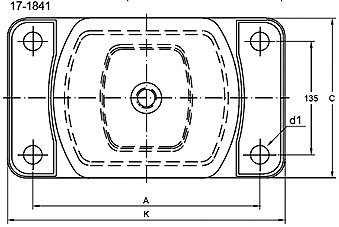

Cushyfloat Art.No.

Dimensions in mm
Weight (kg)
M-max (kg)
B
C
A
K
H
d1
L1
d2
L2
G
17-1600-45
(45° IRH)
60
60
100
120
38
11
14


M12
0.3
35
17-1600-55
(55° IRH)
55
17-1600-65
(65° IRH)
80
17-1609-45
(45° IRH)
75
75
140
183
50
13
20
13
30
M16
0.9
110
17-1609-55
(55° IRH)
160
17-1609-65
(65° IRH)
200
17-1609-75
(75° IRH)
250
17-1657-45
(45° IRH)
80
112
182
230
70
18
26
18
34
M20
2.4
280
17-1657-55
(55° IRH)
450
17-1657-65
(65° IRH)
600
17-1657-75
(75° IRH)
810
17-1841-40
(40° IRH)
145
190
270
330
112
Ø22



M24
9.6
950
17-1841-50
(50° IRH)
1400
17-1841-60
(60° IRH)
2200
17-1841-70
(70° IRH)
3000
