Equi-frequency Mountings
Metalastik® type Equi-frequency Mounting
General purpose low profi le mounting for use where space is restricted. Suitable for stationary applications. May also be used to protect delicate or sensitive equipment from external shock or disturbances.
Typical applications include:
• Instrument panels
• Small fan sets
• Small vacuum pumps
Features
Each design has substantially the same stiffness in vertical and horizontal directions. Load range 11 kg to 54 kg. Can be used as small anti-shock mounting when static loadings are derated.
Type
Art.No.
M-Max (kg)
Weight (kg)
Equi-frequency mountings

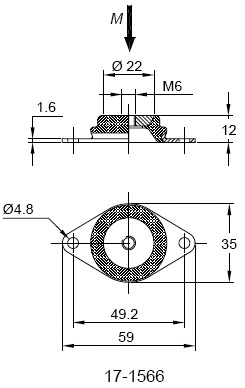

17-1566-45 (45° IRH)
11
0.024
17-1566-60 (60° IRH)
22
0.024

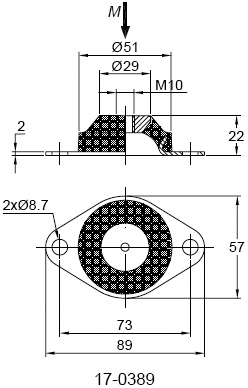

17-0389-45 (45° IRH)
27
0.10
17-0389-60 (60° IRH)
54
0.10
