Fanflex™ |
|
Metalastik® type Fanfl ex™ |
A simple mounting designed predominantly for the suspension
of heating, ventilating and air conditioning equipment.
|
May be used for: |
Pumps, fans, compressors and control cabinets. |
|
|
Features |
Simple design with metal parts encapsulated in high grade oil-resisting rubber compound giving good environmental resistance. |
Provides relatively large static defl ections and hence a high degree of vibration attenuation - 90% isolation for disturbing frequencies of 15 Hz ( 900 c.p.m ). |
Range gives capacity for point loads of 35 kg to 350 kg. |
|
|
|
Type |
Art.No |

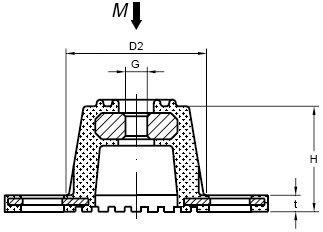

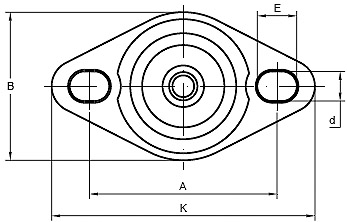

Dimensions in mm |
Weight (kg) |
M-Max (kg) |
Colour code |
A |
K |
H |
B |
D1 |
D2 |
E |
G |
d |
t |
Fanflex 100-45 (45° IRH) |
319900 |
57 |
80 |
32 |
45 |
|
41 |
12 |
M8 |
9 |
5 |
0.09 |
35 |
yellow |
Fanflex 100-55 (55° IRH) |
319910 |
57 |
80 |
32 |
45 |
|
41 |
12 |
M8 |
9 |
5 |
0.09 |
65 |
blue |
Fanflex 100-65 (65° IRH) |
319920 |
57 |
80 |
32 |
45 |
|
41 |
12 |
M8 |
9 |
5 |
0.09 |
100 |
red |
Fanflex 200-45 (45° IRH) |
319930 |
71 |
95 |
45 |
60 |
|
56 |
14 |
M10 |
9 |
5 |
0.22 |
130 |
yellow |
Fanflex 200-55 (55° IRH) |
319940 |
71 |
95 |
45 |
60 |
|
56 |
14 |
M10 |
9 |
5 |
0.22 |
225 |
blue |
Fanflex 200-65 (65° IRH) |
319950 |
71 |
95 |
45 |
60 |
|
56 |
14 |
M10 |
9 |
5 |
0.22 |
350 |
red |
MC 6535-45 (45° IRH) |
2231000 |
48 |
65 |
36 |
|
34 |
51 |
8 |
M10 |
7.5 |
2 |
0.12 |
45 |
white |
MC 6535-55 (55° IRH) |
2231010 |
48 |
65 |
36 |
|
34 |
51 |
8 |
M10 |
7.5 |
2 |
0.12 |
75 |
red |
MC 6535-65 (65° IRH) |
2231020 |
48 |
65 |
36 |
|
34 |
51 |
8 |
M10 |
7.5 |
2 |
0.12 |
115 |
black |
|
