Flanged Instrumountings
Features
• Fail-safe when fi tted with overload and rebound washers of the same diameter as the rubber section.
• Load range from 2.7 to 5.4 kg.
• Static defl ection up to 3 mm.
• Easy to fi t as part of a cabinet enclosure.
• Can be used in both vertical directions.

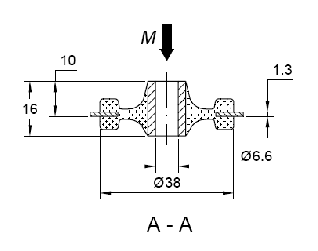

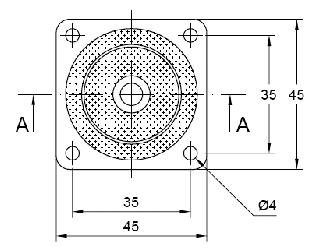

Metalastik® type Flanged Instrumountings
These mountings are suitable for both mobile and static applications, for the protection of sensitive equipment from external vibration or for vibration isolation of small fan sets, transformers and similar equipment. Flanged Instrumountings can be fail-safe if fi tted with a washer to the top and bottom of the rubber section.
Art.No.
M-Max (kg)
Weight (kg)
17-1801-45 (45° IRH)
2.7
0.03
17-1801-60 (60° IRH)
5.4
0.03
