| GK |
|
| Features |
Type GK is a heavy duty mounting with excellent fl exible characteristics in both vertical and lateral planes. Defl ection up to 30 mm is possible making type GK suitable for installations with low disturbing frequencies.
|
Installation is simple, eliminating traditional methods of attachment to machinery or support structure. |
|
|
| Novibra® type GK |
Mounting type GK is specifi cally designed for isolation of heavy machinery with low interfering frequencies. It is widely used under concrete foundations supporting heavy machinery. |
The long narrow section enables type GK to be suitable for fi tting under a common structural frame supporting different equipments. |
| Typical fi elds of application are: |
| • Rolling mills |
• Paper mills |
| • Mixers |
• Converters |
| • Gearboxes |
• Sound enclosures |
| • Industrial fans |
• Floating structures |
|
|
|
|
|
Type |
Art.No. |

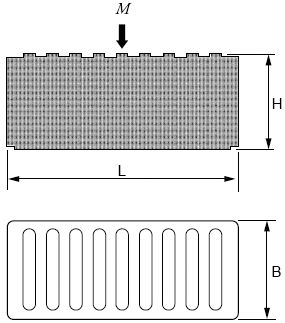

Dimensions in mm |
Weight (kg) |
M-Max(kg) |
L |
B |
H |
GK 0-40 (40° IRH) |
1534080 |
195 |
175 |
150 |
5.2 |
1800 |
GK 0-60 (60° IRH) |
1861630 |
195 |
175 |
150 |
5.7 |
3800 |
GK 1-40 (40° IRH) |
67959 |
400 |
175 |
150 |
10.7 |
4000 |
GK 1-60 (60° IRH) |
67967 |
400 |
175 |
150 |
11.8 |
8000 |
|
