M
Novibra® type M
Type M is ideal for applications involving isolation of low frequency vibrations in all planes. Also suitable for shock attenuation due to the designed ability to offer large defl ection. Provides passive vibration isolation on electronic instruments, measuring equipment and test cells.
Specifi c fi elds of application are:
• Compressors • Electric motors
• Refrigerators • Weighing scales
• AC-units • Test cell equipment
• Ventilators • Noise control units
• Fans • Pumps
• Powder handling machinery • Food processing equipment
• Vibratory screens equipment • Packaging applications
Features
Novibra® type M is specifi cally designed to give large defl ection at low loads. Although the mount design allows high defl ection, the mountings are compact in weight and easy to install.
Its unique construction and the latest production methods make Novibra® type M a high performance antivibration mounting having a number of advantages:
• Tight tolerances on dynamic stiffness rate for accurate vibration calculations.
• Wide load rating options, 3.5–2500 kg.
• Corrosion protected to cope with arduous environments on land or marine applications (Fe/Zn8C2 as per ISO 2081).
• Clear and durable product marking so that mountings can be identifi ed even after several years in operation.

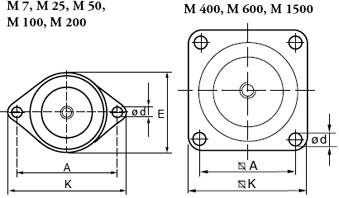

When using M mount together with the height adjuster HA, it is necessary to use a washer. The diameter of the washer must be 20% larger than the diameter of the upper plate (D).
