Metacone™ & HK
Metalastik® type Metacone™ and Novibra® type HK
A range of mountings designed for high load capacity with relatively large static defl ections. The high loading for a given size is achieved by utilising the rubber to best advantage in shear and compression. Normally, mountings are assembled with overload and rebound washers to control and limit movement of the suspended equipment under shock loads. Centre fi xing bolts should be torque tightened to the recommended values.
Applications include suspensions for:
• Off-road and road vehicle engines
• Marine Engines
• Vehicle Cabs
• Oil Tanks/Tankers
• Mobile applications
Features
A compact fail safe design, available for a wide range of loadings with in some cases alternative fi xings.

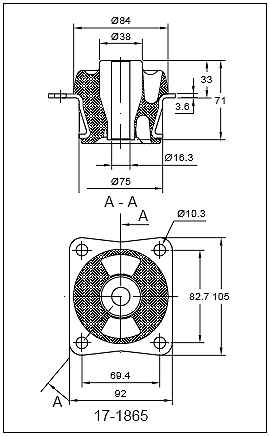

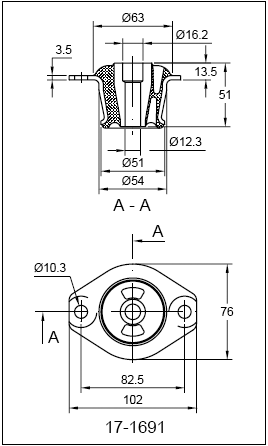

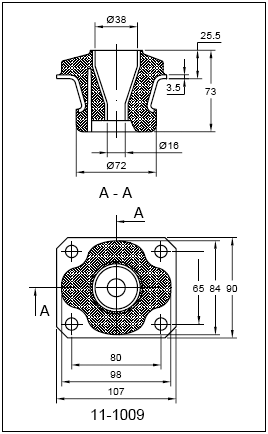

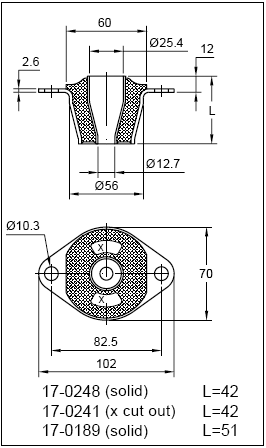

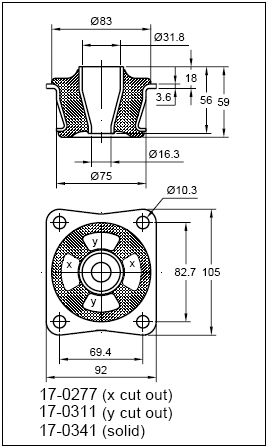

Cutouts in rubber section on various sizes provide different vertical/horizontal stiffness ratios.
Most sizes can be supplied complete with overload and rebound washers.
  Top and bottom washers
  Overload and rebound washers (top and bottom) are neces sary to limit maximum movement in the event of shock loading.
Type A
Steel Washer
Type B
Top Stepped Steel Washer
Type C
Rebound Washer with Rubber
