| Features |

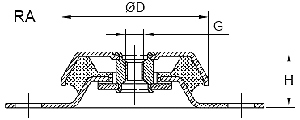

Metaxentric™ bushes have a large rubber section with the central pin offset towards one radial plane. These bushes can provide a relatively large radial defl ection, but have excellent motion control characteristics.
|
RA and EF uses the rubber profi le in shear and compression, obtaining good vertical fl exibility with the advantage of horizontal stability. For normal speeds of approx. 1500 rpm, the RA and EF type provides a degree of isolation of 75-85%. For better isolation, the alternative RAEM or M can be chosen.
|
| • Rubber features are utilised effectively combining compression and shear. |
| • Wide load rating options, 40-2100 kg. |
| • Corrosion protected to cope with arduous environments on land or marine applications (Fe/Zn8C as per ISO 2081). |
• Fitted as standard with an integral fail-safe design device with resilient stop, making RA and EF ideal for use in mobile or marine applications. The RA/EF-mounts can accomodate occasional shock loads to 5 g reference to the weight in hardness 60° IRH. The mount will withstand shock loads up to 2 g without plastic deformation. |
| • Clear and durable product marking so that mountings can be identifi ed even after several years in operation. |
| • Domed shape cover to protect against oil contamination. |
